| SPECIFICATIONS |

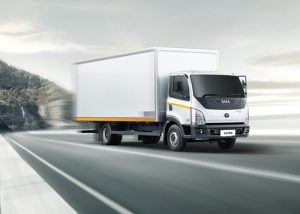

Ultra 814 |
| ENGINE |
| Make |
TATA |
| Model |
TATA NEW 3L ENGINE E4 |
| Capacity (cc) |
2,956 |
| Layout |
4 Cy In Line |
| Type |
CRDi |
| Power kw at r/min |
103 KW @ 3000rpm |
| Torque Nm at r/min |
360 Nm @ 1700-2300rpm |
| CLUTCH |
| Type |
Single plate dry friction type Booster assisted |
| Diameter (mm |
330 |
| TRANSMISSION |
| Make/ Model |
TATA G550 – OD |
| Type |
Manual |
| Shift |
MECHANICAL (CABLE OPERATED) |
| No. of gears fwd |
6 |
| First gear ratio |
6.9 |
| Top gear ratio |
0.84 |
| Shift |
MAJOR DIMENSIONS |
| Wheel base (mm |
3,920 | 3,310 |
| Overall length (mm) |
7,058 | 6,143 |
| Overall height (mm) |
2,464 |
| Overall width (mm) |
2,204 |
| Front overhang |
1,180 |
| Rear overhang |
1,863 | 1,558 |
| WEIGHT |
| GVW (kg) |
8,750 |
| Kerb Weight approx (kg) |
3,240 | 3,170 |
| Permissable rear axle weight (kg) |
5,500 |
| Permissable front axle weight (kg) |
3,250 |
| Payload (kg) |
5,510 | 5,580 |
| DRIVE AXLE |
| Reduction type |
Banjo type, Single reduction |
| Final ratio |
4.857 |
| BRAKES |
| Type |
Dual Circuit full air S-Cam brake |
| Front |
Fr – Drum 325X120 mm |
| Rear |
Rr – Drum 325X120 mm |
| Anti-lock braking system (ABS) |
ABS |
| Parking brake |
Spring actuated acting on rear wheels. |
| Auxillary |
Exhaust brake coupled with service brake. |
| CHASSIS |
| Tyres |
225/75R 17.5 |
| Steering |
Integrated type hydraulic power. Tilt & telescopic
with steering lock |
| Suspension |
Front: Parabolic Springs,
Antiroll bar in front
Rear: Semi elliptical with
Parabolic Aux springs |
| Fuel Tank Capacity (Ltrs) |
120 | 90 |
|
